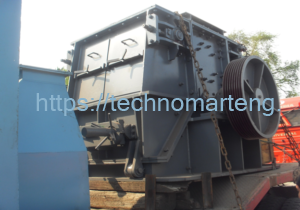

Impact Crushers Manufacturer

At Technomart India, We stand as a leading manufacturer of impact crushers. Our impact crusher uses advanced rotating blow bars for striking the materials then the materials are thrown against the impact plates or a rotor, which ultimately breaks the materials into pre-defined sizes. We have introduced an advanced system that employs an impact force rather than a compression force. Businesses across India choose our precisely manufactured impact crusher machine because it provides exceptional performance in crushing such as limestone, coal, gypsum, and some types of recycling materials (concrete, asphalt).

We have established a strict quality check approach to deliver the best possible machines to the whole of India. We have engineered machines to provide the exact shape and size for materials, typically in a cubic shape. Our machine is known for providing uniform and consistent results in every batch of cursing. Also, this crusher is used for secondary or tertiary stages of crushing because of its capabilities, which helps industries to crush the materials that are already crushed. Our machine also provides an adjustable system that makes it ideal for businesses that need precise control over sizes.

Jaw Crushers


Features of Impact Crushers

  • High Reduction Ratio – we have made our machine with a strong focus on delivering excellent size in a single pass, providing industrial-grade sizes with uniform shapes through the process.
  • Robust Rotor Design – we have integrated a heavy-duty rotor that delivers exceptional power for crushing the hardest materials and also provides uniform shaping even under tough and continuous industrial operations.
  • Adjustable Settings – we have made our crusher’s impact plates and rotor with advanced quality materials to provide custom setting for desired outputs requirements.
  • Low Maintenance – our machines require minimum maintenance and are made with a sleek modern design that ultimately results in zero downtime and maintenance costs.
  • Versatile Operation – robust construction and custom-made configuration make it perfect for versatile application in a diverse range of industries that require precise sizes of minerals.

Specifications of Impact Crushers

Model Feed Size (mm) Output Size (mm) Capacity (tons/hour) Motor Power (kW) Weight (tons)
TIC-800 ≤ 400 0 - 40 60 - 100 55 7
TIC-1000 ≤ 500 0 - 50 100 - 150 75 9.5
TIC-1200 ≤ 600 0 - 60 150 - 250 110 13.2
TIC-1400 ≤ 700 0 - 75 200 - 300 132 16

Applications

  • Mining
  • Cement
  • Aggregates
  • Recycling
  • Construction
  • Power Plants
